Infrastructure-as-Code - Lab 2 - Installing a Microservice Application with Terraform (Exoscale Edition)

Big Picture

Manage the Terraform State in an Object Store
Install and Configure Virtual Machines via Terraform
Configure Security Groups via Terraform
Connect Microservice Components (Object Links) in Terraform

Run the Lab "Lab 1 - Terraform Introduction (Exoscale Edition)"
Create a new folder for this configuration
Run terraform init to initially check that it works

In the first lab, we managed our state locally in our filesystem. In the real world, this won't scale very well and might be dangerous if you and other developers are using the same code on the same infrastructure. To overcome the issue of diverging states, terraform gives you the possibility to store the state centrally. In our case, we will use the Exoscale Object Store.

Creating a storage bucket

Open the Exoscale Console (https://portal.exoscale.com/)
Click on Storage
Select "Add" to create a new bucket
- Please mind, that you need the storage to store the terraform state, therefore it is not possible to create this store with this terraform configuration (chicken-egg-problem)
Give the Bucket a meaningful name "terraform-asdadfk" and choose a zone
Click on Create

Set some environment variables (Linux / MacOS)

export AWS_ACCESS_KEY_ID=<EXOSCALE_API_KEY>
export AWS_SECRET_ACCESS_KEY=<EXOSCALE_API_SECRET>
export TF_VAR_access_key=${AWS_ACCESS_KEY_ID}
export TF_VAR_secret_key=${AWS_SECRET_ACCESS_KEY}

Set some environment variables (Windows)

set AWS_ACCESS_KEY_ID=<EXOSCALE_API_KEY>
set AWS_SECRET_ACCESS_KEY=<EXOSCALE_API_SECRET>
set TF_VAR_access_key=%AWS_ACCESS_KEY_ID%
set TF_VAR_secret_key=%AWS_SECRET_ACCESS_KEY%

Initialize the new state

Create a file called terraform.tf
Add the following configuration

terraform {
  required_providers {
    exoscale = {
      source  = "exoscale/exoscale"
      version = "0.48.0"
    }
  }
  backend "s3" {
    bucket                      = "<bucket-name>"
    region                      = "at-vie-1"
    key                         = "terraform.tfstate"
    endpoint                    = "https://sos-at-vie-1.exo.io"
    skip_credentials_validation = true
    skip_region_validation      = true
  }
}

provider "exoscale" {
  key    = var.access_key
  secret = var.secret_key
}

There are lots of interesting things in there and some things changed between the first lab and this one:

backend: We are defining a S3 Backend here, which means that our state will be stored in our object store
- The Credentials are taken from the environment variables AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY. Mind, that the credentials for backends cannot be stored in variables.
provider: We changed the provider configuration to use variables.

Define Variables

As in many other programming language, we have to define our variables in the code. Most of the time, we will create a separate file for our variables in terraform. Therefore, we will create a new file called vars.tf in our configuration folder and add the following content:

variable "secret_key" {
  type = string
  sensitive = true
}

variable "access_key" {
  type = string
  sensitive = true
}

There are different types of variables in terraform:

string: e.g. "your name"
number: e.g. 1
bool: true
maps and objects for more complex operations.

Using the sensitive = true directive, we can ensure that the content of this variable is not exposed in any output.

Assigning Variables

There are various ways to assign variables:

In the commandline
using .tfvars files
using environment variables

For this example, we already assigned environment variables; the ones which started with TF_VAR_.

Setting up the state

Now we can initialize our new state using: terraform init. If you navigate to your bucket in the exoscale console, you should see a terraform.tfstate object now.

We will create 2 instances, a frontend and a backend service
Create a file called main.tf
Create the configuration for these 2 instances

# Data Source for getting the ubuntu template
data "exoscale_compute_template" "ubuntu_template" {
  zone = "at-vie-1"
  name = "Linux Ubuntu 22.04 LTS 64-bit"
}

# Resource for podtatohead-main
resource "exoscale_compute_instance" "podtatohead-frontend" {
  zone = "at-vie-1"
  name = "podtatohead-frontend"

  template_id = data.exoscale_compute_template.ubuntu_template.id
  type        = "standard.tiny"
  disk_size   = 10
}

# Resource for podtatohead-backend
resource "exoscale_compute_instance" "podtatohead-backend" {
  zone = "at-vie-1"
  name = "podtatohead-backend"

  template_id = data.exoscale_compute_template.ubuntu_template.id
  type        = "standard.tiny"
  disk_size   = 10
}

Switch to your shell and open the directory which contains your configuration
To check if this configuration is syntactically correct and internally consistent, type terraform validate
This should lead to following output

❯ terraform validate
Success! The configuration is valid.

Afterwards, a dry-run of this using terraform plan
The output should end like this:

Plan: 2 to add, 0 to change, 0 to destroy.

───────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't
guarantee to take exactly these actions if you run "terraform apply" now.

As there are only new objects created in this case, it's time to apply the configuration
Type terraform apply
You will get asked if you are sure that you want to perform these actions, type "yes". If you want to skip this question, you could start terraform apply with the parameter --auto-approve (but be sure what you're doing).
Now, the instances get created and after that, you should see the following output:

[...]

Plan: 2 to add, 0 to change, 0 to destroy.
exoscale_compute_instance.podtatohead-frontend: Creating...
exoscale_compute_instance.podtatohead-backend: Creating...
exoscale_compute_instance.podtatohead-backend: Still creating... [10s elapsed]
exoscale_compute_instance.podtatohead-frontend: Still creating... [10s elapsed]
exoscale_compute_instance.podtatohead-frontend: Creation complete after 19s [id=i-0024742a855b87fe8]
exoscale_compute_instance.podtatohead-backend: Creation complete after 19s [id=i-095392d47383309ba]

Apply complete! Resources: 2 added, 0 changed, 0 destroyed.

Inspect our environment

Open the Exoscale Console (Browser)
Switch to Compute -> Instances
You should see the following instances:
Edit: You should only see two instances here ...
Currently, we should be aware of the following facts:
- We provisioned 2, plain instances without any software installed
- There is no security group configured, therefore nobody (even we!) will be able to access this instances
- There is no ssh key attached to the instances
Therefore, there's some more work to do

Cloud Init can be used to run scripts after provisioning your Instances, we'll use this to install docker and run the podtatohead containers.

Set up the Cloud Init Templates

We will set up 1 template for the frontend service and one template for the backend service.
Create a directory called templates in your terraform directory
Create a file cloud_init.tpl in the templates directory and add the following:

#!/bin/bash

sudo apt-get update
sudo apt-get install ca-certificates curl gnupg

sudo install -m 0755 -d /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo chmod a+r /etc/apt/keyrings/docker.gpg

echo \
  "deb [arch="$(dpkg --print-architecture)" signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu \
  "$(. /etc/os-release && echo "$VERSION_CODENAME")" stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt-get update

sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin -y

sudo mkdir -p /etc/podtatohead
sudo cat << EOF > /etc/podtatohead/servicesConfig.yaml
hat:       "http://${backend_ip}:8080"
left-leg:  "http://${backend_ip}:8080"
left-arm:  "http://${backend_ip}:8080"
right-leg: "http://${backend_ip}:8080"
right-arm: "http://${backend_ip}:8080"
EOF

%{ if component == "frontend" }
sudo docker run -p 8080:8080 -e PORT=8080 -e PODTATO_COMPONENT=${component} -e SERVICES_CONFIG_FILE_PATH=/etc/podtatohead/servicesConfig.yaml -v /etc/podtatohead/servicesConfig.yaml:/etc/podtatohead/servicesConfig.yaml -d ${container_image}:v${podtato_version}
%{ else }
sudo docker run -p 8080:8080 -e PORT=8080 -d ${container_image}:v${podtato_version}
%{ endif }

Use the Cloud Init Templates

To use these templates, we have to refer to them in our terraform configuration
Therefore, open the main.tf file in your Terraform folder
Add the following line to the podtatohead-frontend resource

  user_data = templatefile("${path.module}/templates/cloud_init.tpl", { container_image = "ghcr.io/podtato-head/podtato-server", podtato_version=var.podtato_version, backend_ip = exoscale_compute_instance.podtatohead-backend.public_ip_address, component = "frontend" })

Add the following line to the podtatohead-backend resource

  user_data = templatefile("${path.module}/templates/cloud_init.tpl", { container_image = "ghcr.io/podtato-head/podtato-server", podtato_version=var.podtato_version, backend_ip = "", component = "backend" })

As a reference, the podtatohead-frontend resource should look as follows now:

# Resource for podtatohead-main
resource "exoscale_compute_instance" "podtatohead-frontend" {
  zone = "at-vie-1"
  name = "podtatohead-frontend"

  template_id = data.exoscale_compute_template.ubuntu_template.id
  type        = "standard.tiny"
  disk_size   = 10
  user_data = templatefile("${path.module}/templates/cloud_init.tpl", { container_image = "ghcr.io/podtato-head/podtato-server", podtato_version=var.podtato_version, backend_ip = exoscale_compute_instance.podtatohead-backend.public_ip_address, component = "frontend" })
}

Validate the configuration

To validate this configuration, type terraform validate
After that, we should see something like this:

│ Error: Reference to undeclared input variable
│
│   on main.tf line 25, in resource "exoscale_compute_instance" "podtatohead-backend":
│   25:   user_data = templatefile("${path.module}/templates/cloud_init.tpl", { container_image = "ghcr.io/podtato-head/podtato-server", podtato_version=var.podtato_version, backend_ip = "", component = "backend" })
│
│ An input variable with the name "podtato_version" has not been declared. This variable can be declared with a variable "podtato_version" {} block.

Defining Variables

To define the variables, open the vars.tf in your terraform folder
Add the following to that file

variable "podtato_version" {
  type = string
}

When you are trying to apply the configuration now, you are asked for a version. Use 0.3.2 here.

Assigning Variables

These variables can be used in different ways (environment variables starting with TF_VAR or via a .tfvars file). In this example, we will use a tfvars file, which is automatically used when present.
Create a file terraform.tfvars in your terraform directory and add the following content

podtato_version="0.3.2"

Now, we created our variables and should be able to apply our configuration

Tainting Resources

The Exoscale will not cause a restart of the containers and therefore, we have to force the restart of them. As a workaround:

Run terraform taint exoscale_compute_instance.podtatohead-frontend
Run terraform taint exoscale_compute_instance.podtatohead-backend

This will instruct Terraform to re-create the resources.

Plan and apply the configuration

terraform validate should pass now
run terraform plan and inspect the output:

[...]
Plan: 2 to add, 0 to change, 2 to destroy.

───────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't
guarantee to take exactly these actions if you run "terraform apply" now.

run terraform apply

Open a shell to your instances

Try to open an SSH connection as we did it in the previous lesson

Add your SSH Key to the configuration

In the last lesson, you created an SSH Key to access the instances
Find out which name you used, and add this to the instance configuration:+

  ssh_key="<your-key>"

To assign a security group in terraform, we have to create a security_group resource and assign it to an instance.

To create the Security Group, add the following resource block to your Terraform main.tf file:

resource "exoscale_security_group" "public_ingress" {
  name = "public-ingress"
}

resource "exoscale_security_group_rule" "rule_http" {
  security_group_id = exoscale_security_group.public_ingress.id
  type              = "INGRESS"
  protocol          = "TCP"
  cidr              = "0.0.0.0/0" # "::/0" for IPv6
  start_port        = 8080
  end_port          = 8080
}

resource "exoscale_security_group_rule" "rule_ssh" {
  security_group_id = exoscale_security_group.public_ingress.id
  type              = "INGRESS"
  protocol          = "TCP"
  cidr              = "0.0.0.0/0" # "::/0" for IPv6
  start_port        = 22
  end_port          = 22
}

Assign the Security Groups

These Security Groups can now be used in your instances, when you reference them as follows in your resource configuration:

 security_group_ids = [ exoscale_security_group.public_ingress.id ]

A sample configuration should look like this now:

resource "exoscale_compute_instance" "podtatohead-frontend" {
  zone = "at-vie-1"
  name = "podtatohead-frontend"

  template_id = data.exoscale_compute_template.ubuntu_template.id
  type        = "standard.tiny"
  disk_size   = 10
  ssh_key="exoscale"
  user_data = templatefile("${path.module}/templates/cloud_init.tpl", { container_image = "ghcr.io/podtato-head/podtato-server", podtato_version=var.podtato_version, backend_ip = exoscale_compute_instance.podtatohead-backend.public_ip_address, component = "frontend" })
  security_group_ids = [ exoscale_security_group.public_ingress.id ]
}

Apply the configuration

Now you can validate, plan and apply your configuration again:
- Taint frontend and backend
- terraform validate
- terraform plan
- terraform apply

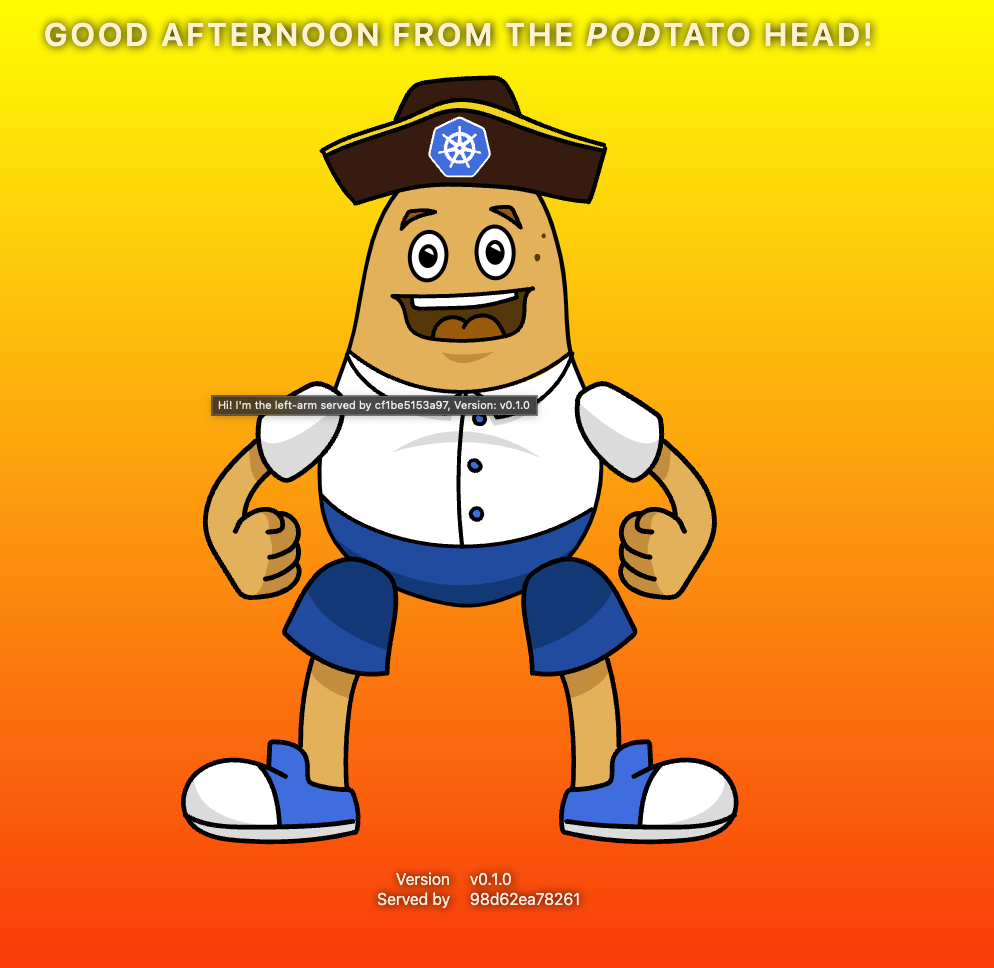

You should be able to access the podtatohead-application after some minutes

You can specify things which should declared as outputs in terraform, in our case we want to get the url for our podtatohead
Create a file outputs.tf in your Terraform directory with the following contents

output "podtato-url" {
  value = "http://${exoscale_compute_instance.podtatohead-frontend.public_ip_address}:8080"
}

Afterwards, do a terraform refresh to update the state
In the outputs section, you can see the podtato-url which can be put in a browser, simply try to do this
