SSOA Lab 1 - Enable a legacy application to use OIDC

What You'll Learn

PodTatoHead-BigPicture

Set Up an AWS Instance
Install Docker
Run a container on a specific port
Getting Information from a metadata endpoint
Issue a LetsEncrypt Certificate (Staging)
Configure an oauth-application in GitHub
Use oauth-proxy to authenticate via GitHub

Open the AWS Console
Search for EC2
Click on Launch Instances
- Step 1: Choose an Amazon Machine Image (AMI)
  - Amazon Linux 2 AMI (HVM), SSD Volume Type (x86)
- Step 2: Choose an Instance Type
  - t2.micro
- Step 3: Configure Instance Details
  - Keep Default
- Step 4: Add Storage
  - Keep Default
- Step 5: Add Tags
  - Name: podtatohead-oauth
- Step 6: Configure Security Group
  - Create New Security Group
    - Security Group Name: podtatohead-http-in
    - Add Rules
      - Type: HTTP
      - Type: HTTPS
      - Rest Default
  - Review and Launch
- Launch
- Select an existing key-pair or create one
- Launch instance

Prerequisites:
- Installed awscli
Open a Shell
Ensure that aws-cli is configured

cat ~/.aws/credentials

Describe all Instances

aws ec2 describe-instances

You should see all EC2 Instances (in our case one)
Query the Instance Name

aws ec2 describe-instances --filters "Name=tag:Name,Values=podtatohead-oauth" --query "Reservations[].Instances[].PublicDnsName" --out text | xargs
[
    "<instance-name>.compute-1.amazonaws.com"
]

Put the Instance Name in a Variable

  INSTANCE_HOSTNAME=$(aws ec2 describe-instances --filters "Name=tag:Name,Values=podtatohead-oauth" --query "Reservations[].Instances[].PublicDnsName" --out text | xargs)

Get the instance hostname from the AWS console (Public IPv4 DNS or Public IPv4 Address)
Open a shell

 ssh -i ~/.ssh/labsuser.pem ec2-user@${INSTANCE_HOSTNAME}

      __|  __|_  )
      _|  (     /   Amazon Linux 2 AMI
     ___|\___|___|

 https://aws.amazon.com/amazon-linux-2/

Update Package List: sudo yum update -y
Install Docker: sudo yum install docker -y
Start Docker Service: sudo service docker start
Add ec2-user to docker-group: sudo usermod -a -G docker ec2-user
Log out and log in again
Try if docker works

$> docker run hello-world

ec2-user@ip-172-31-85-66 ~]$ docker run hello-world
Unable to find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
b8dfde127a29: Pull complete
Digest: sha256:61bd3cb6014296e214ff4c6407a5a7e7092dfa8eefdbbec539e133e97f63e09f
Status: Downloaded newer image for hello-world:latest

Hello from Docker!
This message shows that your installation appears to be working correctly.

To generate this message, Docker took the following steps:
 1. The Docker client contacted the Docker daemon.
 2. The Docker daemon pulled the "hello-world" image from the Docker Hub.
    (amd64)
 3. The Docker daemon created a new container from that image which runs the
    executable that produces the output you are currently reading.
 4. The Docker daemon streamed that output to the Docker client, which sent it
    to your terminal.

To try something more ambitious, you can run an Ubuntu container with:
 $ docker run -it ubuntu bash

Share images, automate workflows, and more with a free Docker ID:
 https://hub.docker.com/

For more examples and ideas, visit:
 https://docs.docker.com/get-started/

Run the container on the port 8080 daemonized

docker run -d -p 8080:9000 ghcr.io/podtato-head/podtatoserver:v0.1.2

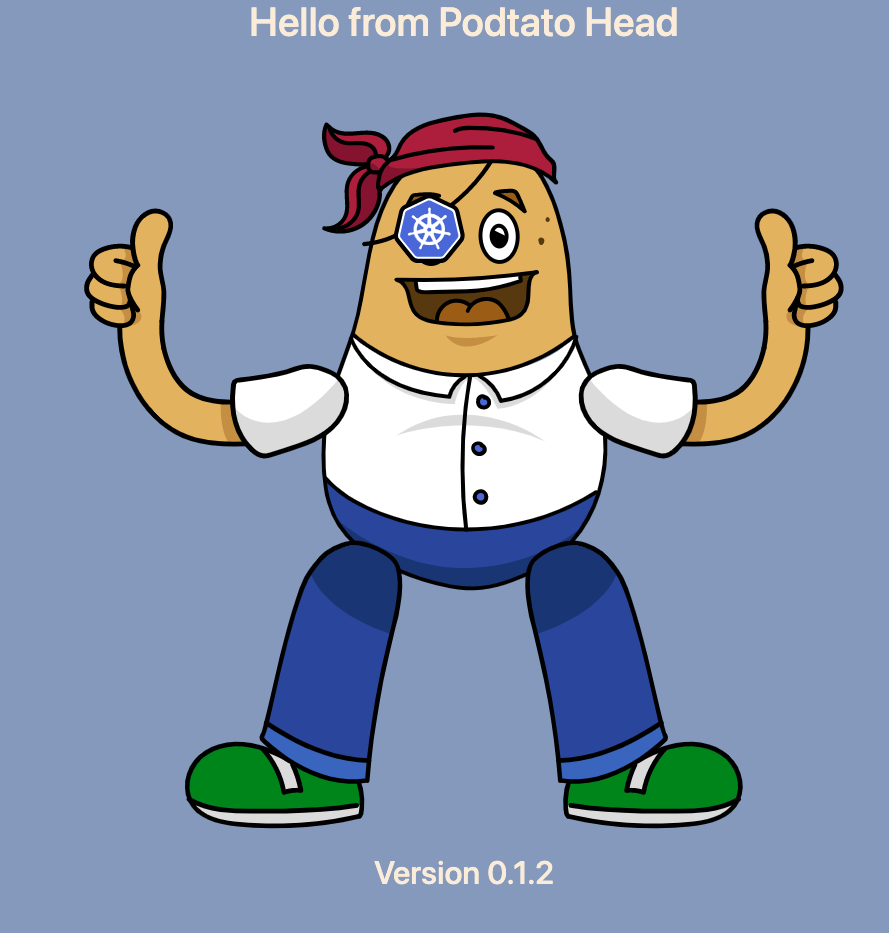

Let's see if our app works

$> curl http://localhost:8080

<html>
  <head>
    <title>Hello server</title>
    <link rel="stylesheet" href="./static/styles.css"/>
    <link rel="stylesheet" href="./static/custom.css"/>
  </head>
  <body style="background-color: #849abd;color: #faebd7;">
  <main class="container">

  <div class="text-center">
    <h1>Hello from Podtato Head</h1>
    <div style="width:700px;height:800px;margin:auto;position:relative;">
      <img src="./static/images/body.svg" style="position:absolute;margin-top:80px;margin-left:200px;">
      <img src="./static/images/hats/hat-03.svg" style="position:absolute;margin-left:200px;margin-top:0px;">
      <img src="./static/images/left-arm/left-arm-03.svg" style="position:absolute;top:100px;left:-50px;">
      <img src="./static/images/right-arm/right-arm-03.svg" style="position:absolute;top:100px;left:450px;">
      <img src="./static/images/left-leg/left-leg-03.svg" style="position:absolute;top:480px;left: -0px;" >
      <img src="./static/images/right-leg/right-leg-03.svg" style="position:absolute;top:480px;left: 400px;">
    </div>
    <h2> Version 0.1.2 </h2>
  </div>

</main>
</body>
</html>

Get your Public IP Address:

export PUBLIC_IPV4_ADDRESS="$(curl http://169.254.169.254/latest/meta-data/public-ipv4)"

Generate your needed parameters

cat << EOF


=======
Application name:
-- podtatohead-on-aws

Homepage URL:
- https://$PUBLIC_IPV4_ADDRESS.nip.io

Authorization callback URL:
- https://$PUBLIC_IPV4_ADDRESS.nip.io/oauth2/callback
=======


EOF

Open https://github.com/settings/developers
Click on "New OAuth App"
- Add the parameters according to the output above
Click on the application:
- Note client-id
- Create client-secret and keep it open

As we only have ephemeral dns names, we will use LetsEncrypt Staging
Enable EPEL Repositories

sudo amazon-linux-extras install epel -y
sudo yum-config-manager --enable epel

Install CertBot

sudo yum install certbot -y

Get your Hostname from Metadata Endpoint

export PUBLIC_IPV4_ADDRESS="$(curl http://169.254.169.254/latest/meta-data/public-ipv4)"
export PUBLIC_INSTANCE_NAME="$(curl http://169.254.169.254/latest/meta-data/public-hostname)"

Do cert-bot dry-run

sudo certbot certonly --standalone --preferred-challenges http -d $PUBLIC_IPV4_ADDRESS.nip.io --dry-run

If this is successful, run cert-bot staging

sudo certbot certonly --standalone --preferred-challenges http -d $PUBLIC_IPV4_ADDRESS.nip.io --staging

Download oauth2-proxy

mkdir -p /tmp/oauth2-proxy
sudo mkdir -p /opt/oauth2-proxy

cd /tmp/oauth2-proxy
curl -sfL https://github.com/oauth2-proxy/oauth2-proxy/releases/download/v7.1.3/oauth2-proxy-v7.1.3.linux-amd64.tar.gz | tar -xzvf -

sudo mv oauth2-proxy-v7.1.3.linux-amd64/oauth2-proxy /opt/oauth2-proxy/

Create cookie secret
- Generate cookie-secret: export COOKIE_SECRET=$(python -c 'import os,base64; print(base64.urlsafe_b64encode(os.urandom(16)).decode())')
Set some variables (could also be a script)

export GITHUB_USER=<GITHUB_USER>
export GITHUB_CLIENT_ID=<GITHUB_CLIENT_ID>
export GITHUB_CLIENT_SECRET=<GITHUB_CLIENT_SECRET>
export PUBLIC_URL=$(curl http://169.254.169.254/latest/meta-data/public-ipv4).nip.io

Run oauth2-proxy

sudo /opt/oauth2-proxy/oauth2-proxy --github-user="${GITHUB_USER}"  --cookie-secret="${COOKIE_SECRET}" --client-id="${GITHUB_CLIENT_ID}" --client-secret="${GITHUB_CLIENT_SECRET}" --email-domain="*" --upstream=http://127.0.0.1:8080 --provider github --cookie-secure false --redirect-url=https://${PUBLIC_URL}/oauth2/callback --https-address=":443" --force-https --tls-cert-file=/etc/letsencrypt/live/$PUBLIC_URL/fullchain.pem --tls-key-file=/etc/letsencrypt/live/$PUBLIC_URL/privkey.pem

Open a Browser
Browse to "https://${PUBLIC_URL}"
Inspect the certificate and ignore the warning (only here!)
Click on "Log In"
Now you should see the following:

Open the AWS Console
Navigate to EC2 / Shell

Delete the Instance

on the shell

INSTANCE_ID=$(aws ec2 describe-instances --filters "Name=tag:Name,Values=podtatohead-oauth" --query "Reservations[].Instances[].InstanceId" --out text)

aws ec2 terminate-instances --instance-ids $INSTANCE_ID

Clean up the applicaton on GitHub (https://github.com/settings/developers)

Try to run the oauth-proxy with environment variables (as described here: https://oauth2-proxy.github.io/oauth2-proxy/docs/configuration/overview#environment-variables)
