VIRT Lab 2 - Installing a Microservice Application with Terraform

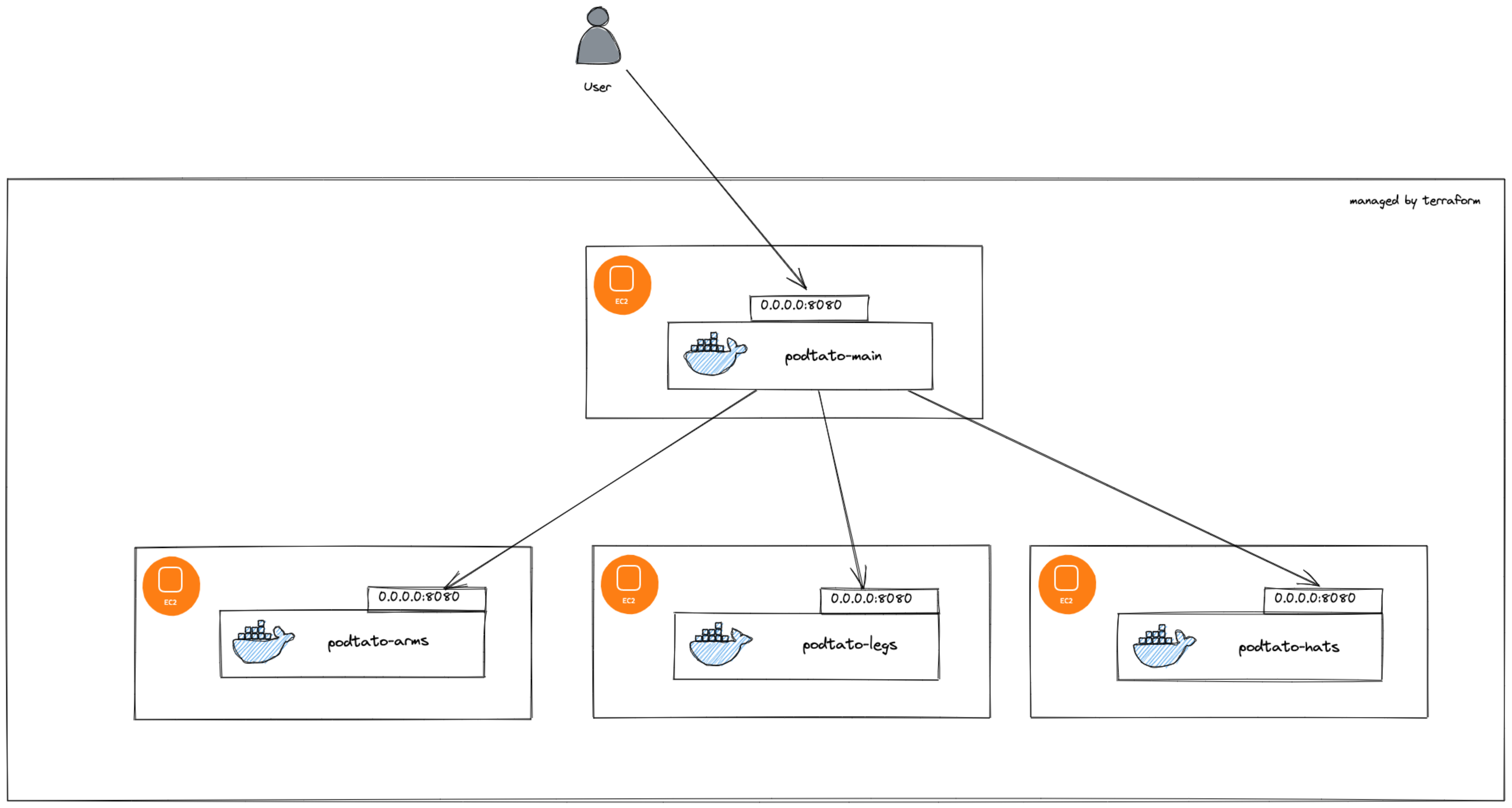

Big Picture

Install and Configure Virtual Machines via Terraform
Configure Security Groups via Terraform
Connect Microservice Components (Object Links) in Terraform

To install terraform, refer to the respective documentation here

In the AWS Academy
- Click on AWS Details
- Show AWS CLI Credentials and copy them
Copy them to your machine ~/.aws/credentials
Terraform is able to use them -> see https://registry.terraform.io/providers/hashicorp/aws/latest/docs

Create a file called provider.tf in your directory
Copy the following block in the file

provider "aws" {
  region = "us-east-1"
}

This should be enough to run our first terraform command

terraform init

This leads to the following output

Initializing the backend...

Initializing provider plugins...
- Finding latest version of hashicorp/aws...
- Installing hashicorp/aws v3.61.0...
- Installed hashicorp/aws v3.61.0 (signed by HashiCorp)

Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

We will create 4 instances
- "main" is the entry point / frontend-service for this application and the body of the podtato-head -"legs" and "arms" are the services, which will represent the corresponding parts of the podtatohead -"hats" will represent the hat (obviously)
Create a file called main.tf
Create the configuration for these 4 instances

# Data Source for getting Amazon Linux AMI
data "aws_ami" "amazon-2" {
  most_recent = true

  filter {
    name = "name"
    values = ["amzn2-ami-hvm-*-x86_64-ebs"]
  }
  owners = ["amazon"]
}

# Resource for podtatohead-main
resource "aws_instance" "podtatohead-main" {
  ami = data.aws_ami.amazon-2.id
  instance_type = "t3.micro"

  tags = {
    Name = "podtatohead-main"
  }
}

# Resource for podtatohead-legs
resource "aws_instance" "podtatohead-legs" {
  ami = data.aws_ami.amazon-2.id
  instance_type = "t3.micro"

  tags = {
    Name = "podtatohead-legs"
  }
}

# Resource for podtatohead-arms
resource "aws_instance" "podtatohead-arms" {
  ami = data.aws_ami.amazon-2.id
  instance_type = "t3.micro"

  tags = {
    Name = "podtatohead-arms"
  }
}

# Resource for podtatohead-hats
resource "aws_instance" "podtatohead-hats" {
  ami = data.aws_ami.amazon-2.id
  instance_type = "t3.micro"

  tags = {
    Name = "podtatohead-hats"
  }
}

Switch to your shell and open the directory which contains your configuration
To check if this configuration is syntactically correct and internally consistent, type terraform validate
This should lead to following output

❯ terraform validate
Success! The configuration is valid.

Afterwards, a dry-run of this using terraform plan
The output should end like this:

Plan: 4 to add, 0 to change, 0 to destroy.

───────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't
guarantee to take exactly these actions if you run "terraform apply" now.

As there are only new objects created in this case, it's time to apply the configuration
Type terraform apply
You will get asked if you are sure that you want to perform these actions, type "yes". If you want to skip this question, you could start terraform apply with the parameter --auto-approve (but be sure what you're doing).
Now, the instances get created and after that, you should see the following output:

[...]

Plan: 4 to add, 0 to change, 0 to destroy.
aws_instance.podtatohead-main: Creating...
aws_instance.podtatohead-legs: Creating...
aws_instance.podtatohead-arms: Creating...
aws_instance.podtatohead-hats: Creating...
aws_instance.podtatohead-legs: Still creating... [10s elapsed]
aws_instance.podtatohead-main: Still creating... [10s elapsed]
aws_instance.podtatohead-arms: Still creating... [10s elapsed]
aws_instance.podtatohead-hats: Still creating... [10s elapsed]
aws_instance.podtatohead-main: Creation complete after 19s [id=i-0024742a855b87fe8]
aws_instance.podtatohead-arms: Creation complete after 19s [id=i-026ffc94cd3117a72]
aws_instance.podtatohead-hats: Creation complete after 19s [id=i-04183576772e51162]
aws_instance.podtatohead-legs: Creation complete after 19s [id=i-095392d47383309ba]

Apply complete! Resources: 4 added, 0 changed, 0 destroyed.

Inspect our environment

Open the AWS Console (Browser)
Switch to EC2 -> Instances

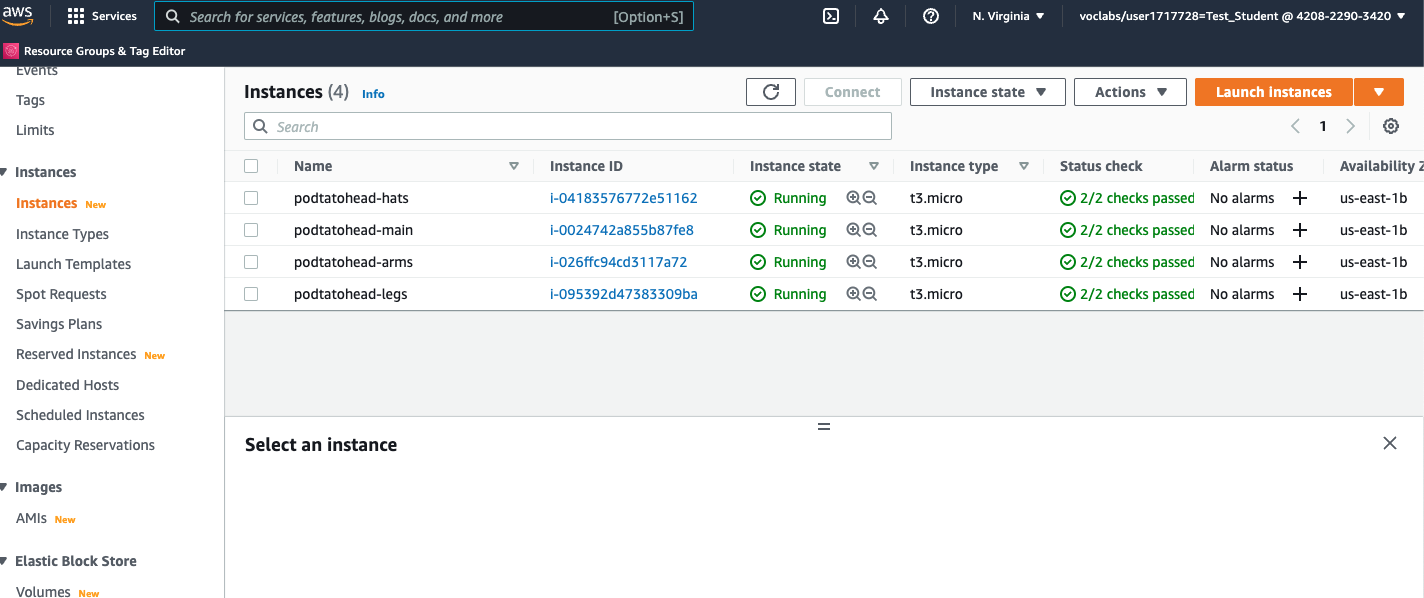

You should see the following instances:
Currently, we should be aware of the following facts:
- We provisioned 4, plain instances without any software installed
- There is no security group configured, therefore nobody (even we!) will be able to access this instances
Therefore, there's some more work to do

Cloud Init can be used to run scripts after provisioning your Instances, we'll use this to install docker and run the podtatohead containers.

Set up the Cloud Init Templates

We will set up 3 templates (as the podtatohead needs different configurations), one for the arms and legs, one for the hats and one for main.
Create a directory called templates in your terraform directory
Create a file init_hats.tpl in the templates directory and add the following:

#!/bin/bash
sudo yum update -y
sudo amazon-linux-extras install docker -y
sudo service docker start
sudo usermod -a -G docker ec2-user
sudo docker run -p 8080:8080 -e PORT=8080 -e VERSION=${version} -d ${container_image}:${podtato_version}

Create an additional file init.tpl (for the legs and arms)

#!/bin/bash
sudo yum update -y
sudo amazon-linux-extras install docker -y
sudo service docker start
sudo usermod -a -G docker ec2-user
sudo docker run -p 8080:8080 -e PORT=8080 -e LEFT_VERSION=${left_version} -e RIGHT_VERSION=${right_version} -d ${container_image}:${podtato_version}

Finally, create a file init_main.tpl (for main)

#!/bin/bash
sudo yum update -y
sudo amazon-linux-extras install docker -y
sudo service docker start
sudo usermod -a -G docker ec2-user
sudo docker run -p 8080:8080 -e PORT=8080 -e HATS_HOST=${hats_host} -e HATS_PORT=8080 -e ARMS_HOST=${arms_host} -e ARMS_PORT=8080 -e LEGS_HOST=${legs_host} -e LEGS_PORT=8080 -d ${container_image}:${podtato_version}

Use the Cloud Init Templates

To use these templates, we have to refer to them in our terraform configuration
Therefore, open the main.tf file in your Terraform folder
Add the following line to the podtatohead-main resource

  user_data = templatefile("${path.module}/templates/init_main.tpl", { container_image = "ghcr.io/fhb-codelabs/podtato-small-main", hats_host = aws_instance.podtatohead-hats.private_ip, arms_host = aws_instance.podtatohead-arms.private_ip, legs_host = aws_instance.podtatohead-legs.private_ip, podtato_version=var.podtato_version } )

Add the following line to the podtatohead-legs resource

   user_data = templatefile("${path.module}/templates/init.tpl", { container_image = "ghcr.io/fhb-codelabs/podtato-small-legs", podtato_version=var.podtato_version, left_version=var.left_leg_version, right_version=var.right_leg_version} )

As a reference, the podtatohead-main resource should look as follows now:

resource "aws_instance" "podtatohead-main" {
  ami = data.aws_ami.amazon-2.id
  instance_type = "t3.micro"

  user_data = templatefile("${path.module}/templates/init_main.tpl", { container_image = "ghcr.io/fhb-codelabs/podtato-small-main", hats_host = aws_instance.podtatohead-hats.private_ip, arms_host = aws_instance.podtatohead-arms.private_ip, legs_host = aws_instance.podtatohead-legs.private_ip, podtato_version=var.podtato_version } )

  tags = {
    Name = "podtatohead-main"
  }
}

Add the following line to the podtatohead-arms resource

  user_data = templatefile("${path.module}/templates/init.tpl", { container_image = "ghcr.io/fhb-codelabs/podtato-small-arms", podtato_version=var.podtato_version, left_version=var.left_arm_version, right_version=var.right_arm_version } )

And finally this line to the podtatohead-hats resource

  user_data = templatefile("${path.module}/templates/init_hats.tpl", { container_image = "ghcr.io/fhb-codelabs/podtato-small-hats", podtato_version=var.podtato_version, version=var.hats_version } )

Validate the configuration

To validate this configuration, type terraform validate
After that, we should see something like this:

Error: Reference to undeclared input variable
│
│   on main.tf line 30, in resource "aws_instance" "podtatohead-legs":
│   30:   user_data = templatefile("${path.module}/templates/init.tpl", { container_image = "ghcr.io/fhb-codelabs/podtato-small-legs", podtato_version=var.podtato_version, left_version=var.left_leg_version, right_version=var.right_leg_version} )
│
│ An input variable with the name "podtato_version" has not been declared. This
│ variable can be declared with a variable "podtato_version" {} block.

Defining Variables

To define the variables, create a new file vars.tf in your terraform folder
Add the following to that file

variable "podtato_version" {
  type = string
}

variable "hats_version" {
  type = string
}

variable "left_arm_version" {
  type = string
}

variable "right_arm_version" {
  type = string
}

variable "right_leg_version" {
  type = string
}

variable "left_leg_version" {
  type = string
}

Assigning Variables

These variables can be used in different ways (environment variables starting with TF_VAR or via a .tfvars file). In this example, we will use a tfvars file, which is automatically used when present.
Create a file terraform.tfvars in your terraform directory and add the following content

podtato_version="v0.1.0"
left_arm_version = "v1"
right_arm_version = "v2"
left_leg_version = "v3"
right_leg_version = "v3"
hats_version = "v4"

Now, we created our variables and should be able to apply our configuration

Plan and apply the configuration

terraform validate should pass now
run terraform plan and inspect the output:

[...]
Plan: 4 to add, 0 to change, 4 to destroy.

───────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't
guarantee to take exactly these actions if you run "terraform apply" now.

run terraform apply

Open a shell to your instances

Open the AWS Console
Navigate to EC2 -> Instances
Right click on one of the instances
- Use EC2 Instance Connect
- Click Connect

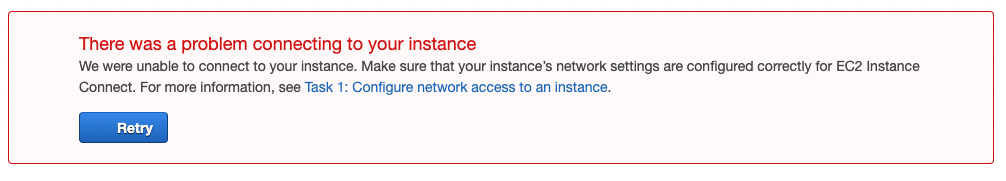

- Something like this should be shown

Big Picture

To assign a security group in terraform, we have to create a security_group resource and assign it to an instance.

To create the SSH Security Group, add the following resource block to your Terraform main.tf file:

resource "aws_security_group" "ingress-all-ssh" {
  name = "allow-all-ssh"
  ingress {
    cidr_blocks = [
      "0.0.0.0/0"
    ]
    from_port = 22
    to_port = 22
    protocol = "tcp"
  }
  // Terraform removes the default rule
  egress {
    from_port = 0
    to_port = 0
    protocol = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

And do the same for the http Security Group

resource "aws_security_group" "ingress-all-http" {
  name = "allow-all-http"
  ingress {
    cidr_blocks = [
      "0.0.0.0/0"
    ]
    from_port = 8080
    to_port = 8080
    protocol = "tcp"
  }
  // Terraform removes the default rule
  egress {
    from_port = 0
    to_port = 0
    protocol = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

Assign the Security Groups

These Security Groups can now be used in your instances, when you reference them as follows in your resource configuration:

 vpc_security_group_ids = [aws_security_group.ingress-all-ssh.id, aws_security_group.ingress-all-http.id]

A sample configuration should look like this now:

resource "aws_instance" "podtatohead-main" {
  ami = data.aws_ami.amazon-2.id
  instance_type = "t3.micro"

  user_data = templatefile("${path.module}/templates/init_main.tpl", { container_image = "ghcr.io/fhb-codelabs/podtato-small-main", hats_host = aws_instance.podtatohead-hats.private_ip, arms_host = aws_instance.podtatohead-arms.private_ip, legs_host = aws_instance.podtatohead-legs.private_ip, podtato_version=var.podtato_version } )

  vpc_security_group_ids = [aws_security_group.ingress-all-ssh.id, aws_security_group.ingress-all-http.id]

  tags = {
    Name = "podtatohead-main"
  }

  lifecycle {
    create_before_destroy = true
  }
}

Apply the configuration

Now you can validate, plan and apply your configuration again:
- terraform validate
- terraform plan
- terraform apply

After you applied the configuration, you should be able to access the SSH console as described before
Furthermore, you should be able to access the podtatohead-application after some minutes

You can specify things which should declared as outputs in terraform, in our case we want to get the url for our podtatohead
Create a file outputs.tf in your Terraform directory with the following contents

output "podtato-url" {
  value = "http://${aws_instance.podtatohead-main.public_ip}:8080"
}

Afterwards, do a terraform refresh to update the state
In the outputs section, you can see the podtato-url which can be put in a browser, simply try to do this

Big Picture

Clean up

After you have finished this lesson, simply remove everything using terraform destroy
